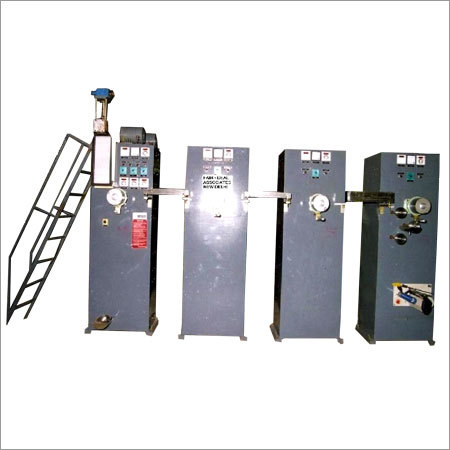

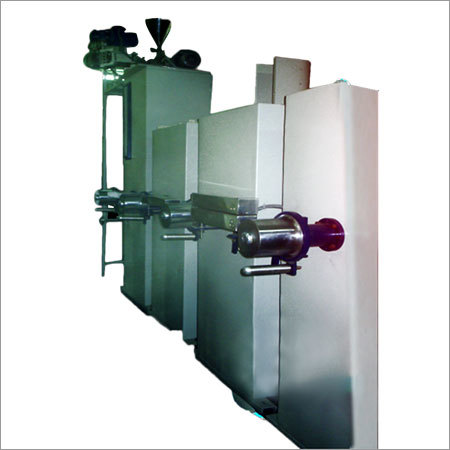

Melt Spinning Machine

Melt Spinning Machine
Melt Spinning Machine
Send Inquiry
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit/Units
  • Price Range
  • 2500000.00 - 3500000.00 INR
Product Description

We are an accredited names engaged in offering of high quality Melt Spinning Machine that is used for producing filaments. This machine is known for high performance, easy installation, corrosion resistance and longer service life. The offered product is designed and assembled using high grade raw material with the help of advanced technology under the management of adroit professionals. In addition to this, offered range of Melt Spinning Machine is available in different technical specifications to meet the varied needs of the clients.

Specifications :

  • Extruder : Dia 25 mm. L/D = 20. General Purpose Screw Compression ratio = 1:3.
  • Metering Pump : According to the Extruder with suitable speed controllers.
  • Spinning Block : Based on Standard design for Melt spinning operation with distributor.
  • Quench System : Suitable for maintaining air velocity between 0.3 mtrs/sec. to 0.8 mtrs/Sec.
  • Take up : Filament winder with winding speed 200 mtrs. Min Max. The speed is controlled according to the last roller.
  • Production Rate : App. One Kg Per Hour.
  • Spinnerets : 18 Holes. 24 Holes

A well known technology for testing of :
  • Spinnability of polymers
  • Producing test quantities of yarn or fibers
  • Small production samples
  • New fiber characteristic

The machine consists of following parts :
  • Extruder Assembly
  • Metering Pump Assembly
  • Spinning Block
  • Quench Chamber
  • Take-up Unit
  • Heater Plates & Oven

Basic Specifications :
  • Total power required for the machine is 10 kW
  • Machine Operating supply AC 3 phase
  • Physical space required for the machine 8m X 3m
Trade Information
  • Supply Ability
  • 1 Per Month
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
